ANPING FUHUA WIRE MESH MAKING CO.,LTD
| Rodzaj płatności: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Zamówienie: | 1 Roll |
| transport: | Ocean,Land,Air,Express |
| Porta: | TIANJIN ,QINGDAO |
Marka: Ruili
Miejsce Pochodzenia: Chiny
Materiał: Żelazny drut, Stalowy drut
Obróbka Powierzchniowa: Ocynkowany, Powlekane PCV
Gatunki: Cewka z drutu kolczastego, Siatka z drutu kolczastego, Drut kolczasty
Typ Ostrza: Pojedyncza brzytwa, Cross Razor
NO Typ modelu.: BTO-22, BTO-30
Barbed Distance: 4"
Barb Length: 22mm
Coil Outside Diameter: 450mm
Color: Galvanized
Width: 2m Max
Height: 2m
Transport Package: Wooden Case, Gunny Bag
Specification: BTO18 BTO22, BTO28, CBT65
Trademark: RUILI
Origin: Anping, Hebei
Código HS: 73130000
Zdolność produkcyjna: 100ton/Month
Material: Galvanized Iron Wire
Twist Method: Welded
Podanie: Protecting Mesh, Fence Mesh
Finish: Hot Dipped Galvanized
Razor Barbed Type: Cross Razor
Wire Gauge: 2.5
| Jednostki sprzedaży | : | Roll |
The file is encrypted. Please fill in the following information to continue accessing it
Materiały: zanurzone w gorąco ocynkowane, elektro ocynkowane, stal nierdzewna, drut żelazny, drut powlekany PVC
Typ: CBT (taśma kolczkowa Concertina) i BTO (przeszkoda z taśmą kolczastą)

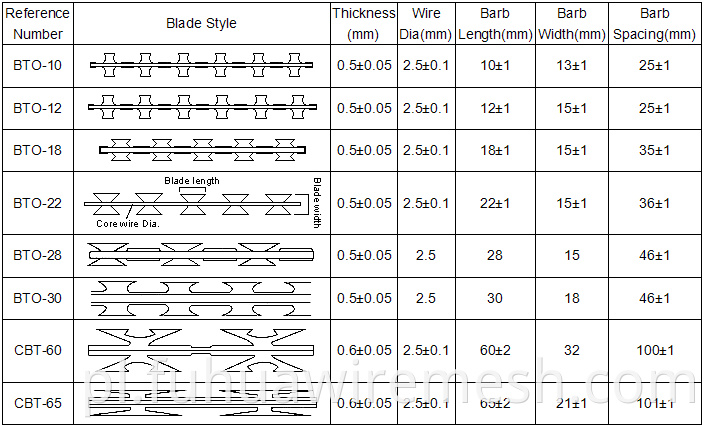

Typ: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65 itp.
Na zewnątrz 450 mm, 500 mm, 700 mm, 600 mm, 980 mm, 1000 mm itp.
[Matrial]
Electro ocynkowane drut i ostrze
Drut i ostrze ocynkowane na gorąco
Stażka stalowa drut i ostrze
PVC powlekane drut i ostrze
Ostrze ze stali nierdzewnej+zanurzone w gorąco zanurzone ostrze ze stali nierdzewnej
Razor typ: pojedynczy typ, typ krzyżowy (3 lub 5CLIPS na koło)
Ogrodzenie z drutu kolczastego brzytwy
Ocynkowane ocynkowane powłoki cynkowe Klasa:
| Outside diameter | NO. of loop | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8m | CBT-60,65 | Single coil |
| 500mm | 41 | 10m | CBT-60,65 | Single coil |
| 700mm | 41 | 10m | CBT-60,65 | Single coil |
| 960mm | 53 | 13m | CBT-60,65 | Single coil |
| 500mm | 102 | 16m | BTO-10,15,22,30 | Cross type |
| 600mm | 86 | 14m | BTO-10,15,22,30 | Cross type |
| 700mm | 72 | 12m | BTO-10,15,22,30 | Cross type |
| 800mm | 64 | 10m | BTO-10,15,22,30 | Cross type |
| 960mm | 52 | 9m | BTO-10,15,22,30 | Cross type |
| Note: The blade types and specifications can be customized according to the customers' actual equirements. BTO-10 and BTO-22 are normally used in production of cross type. | ||||
| High | Standard cover length | Weight |
| 500mm(20inch) | 15M(50ft) | 9.5kg(21lbs) |
| 700mm(28inch) | 15M(50ft) | 13kg(29lbs) |
| 900mm(36inch) | 15M(50ft) | 14.5kg(32lbs) |
| Hole Size | Hole Style | Width | Length | Blade style |
| 100mmX100mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22.30 CBT-60.65 |
| 100mmX150mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| 100mmX200mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| 150mmX300mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| Notes: Any sizes can be customized by customer's request. | ||||
Drut:
Klasa A: Drut 60-80G/M2 Bor: 60-80g/m2
Klasa B: Ostrze 80-120 g/m2: 100-150 g/m2
Klasa C: Drut 160-200G/M2 Ostrze: 230-270g/m2
Płaski drut
Rozmiar siatki: 75*150,150*300
